Weiler 260-28 Lathe with accessories
LATHES — Greece1,500.00 EUR
Status: Available

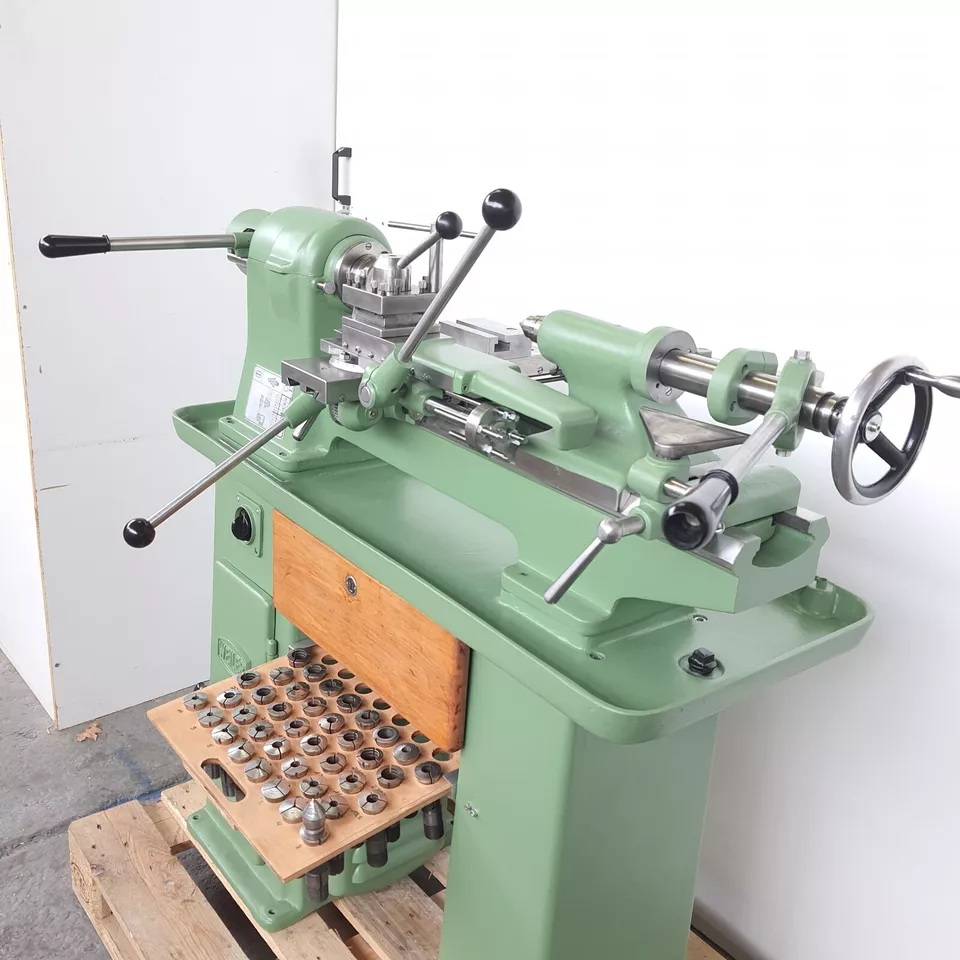

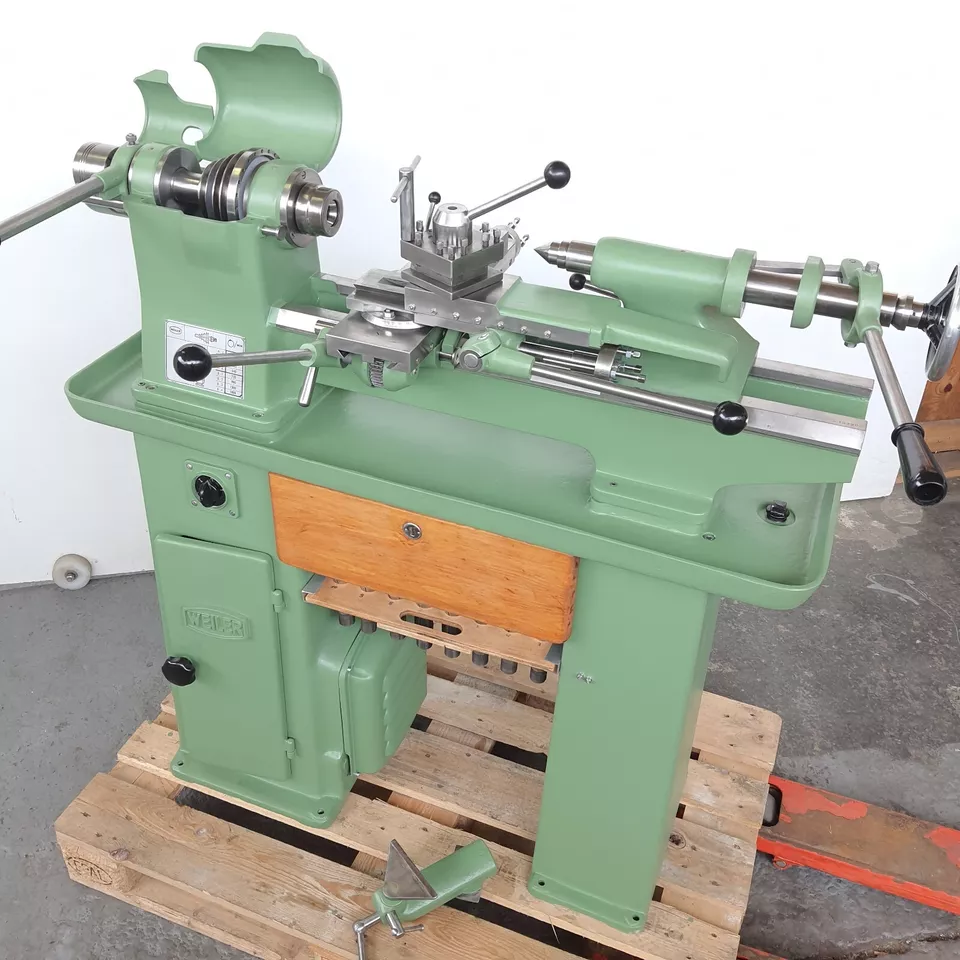

Weiler 260-28 lathe with accessories
28mm spindle bore, 39 collets
Once formerly used in a musical instrument workshop, this lathe was used exclusively for turning copper and brass. The spindle bearings are in excellent condition, enabling very high-precision turning.
Collets fit both the spindle and tailstock.
All mechanics and electrical components function perfectly.
Spindle runs very smoothly, no play, no wobble.
New spindle V-belt.
2 directions, left/right, up to 1800 RPM.
Spindle bore 28 mm, tailstock bore 28 mm.
Center height: 13 cm, width: 50 cm.
Accessories:

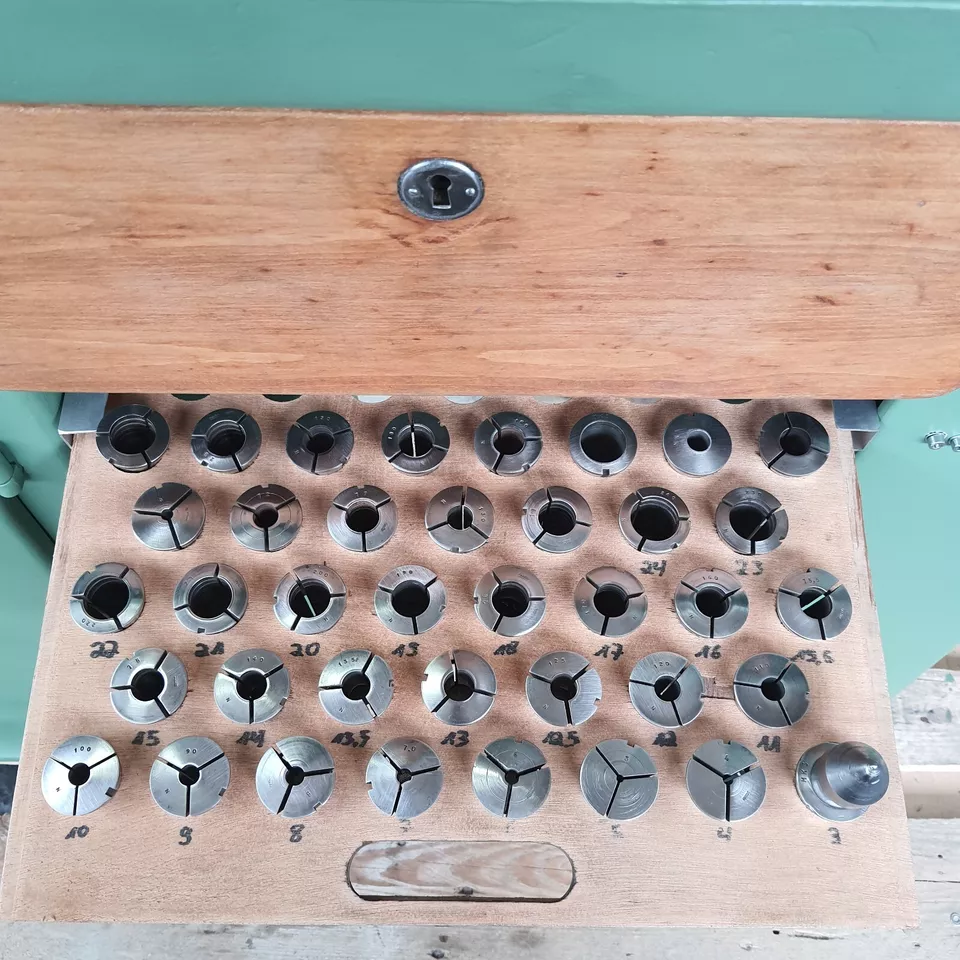

# Collets: 39X: 30 - 40 - 50 - 60 - 70 - 80 - 90 - 100 - 110 - 2x120 - 125 - 130 - 135 - 140 - 3x150 - 2x155 - 2x160 - 170 - 2x180 - 2x190 - 2x200 - 210 - 220 - 230 - 240 mm
2xMK3 - MK1 2x Centering Points.

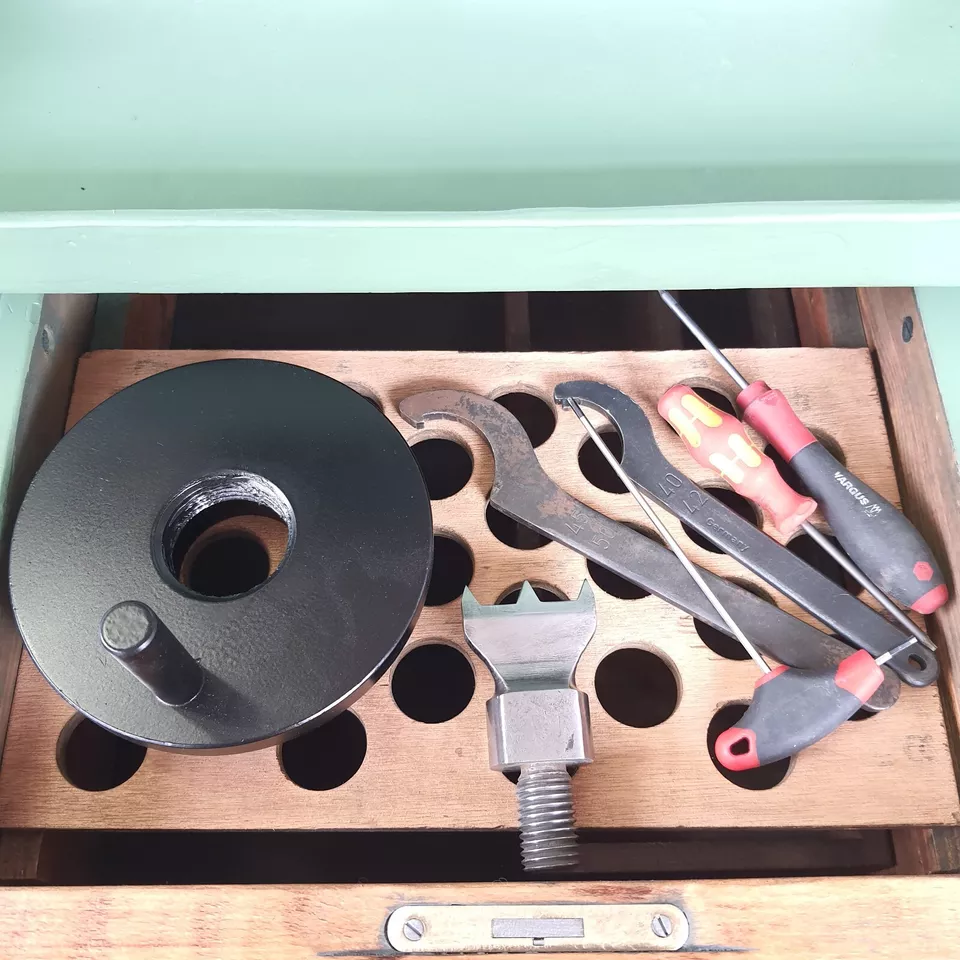

# Pliers Wrench
# Drive Center and Holder for Turning
# Motor: 380V, 0.75 kW, 16A Plug.
# Dimensions: W: 115 cm, D: 80 cm, H: 130 cm, Weight: approx. 350 kg.
