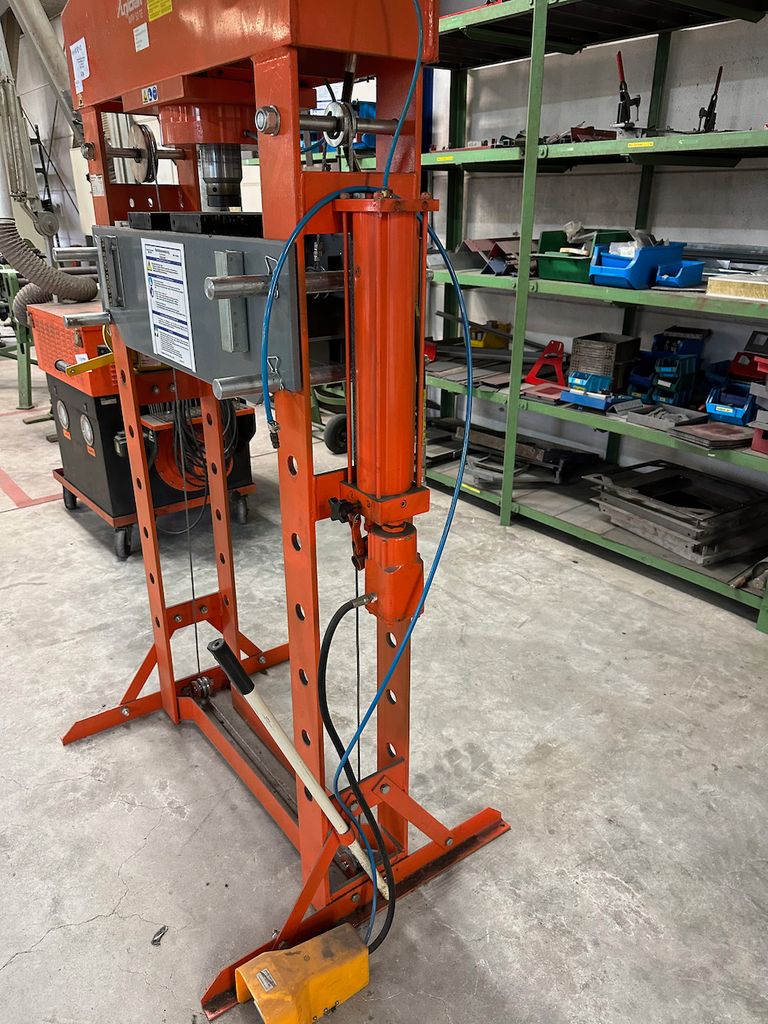

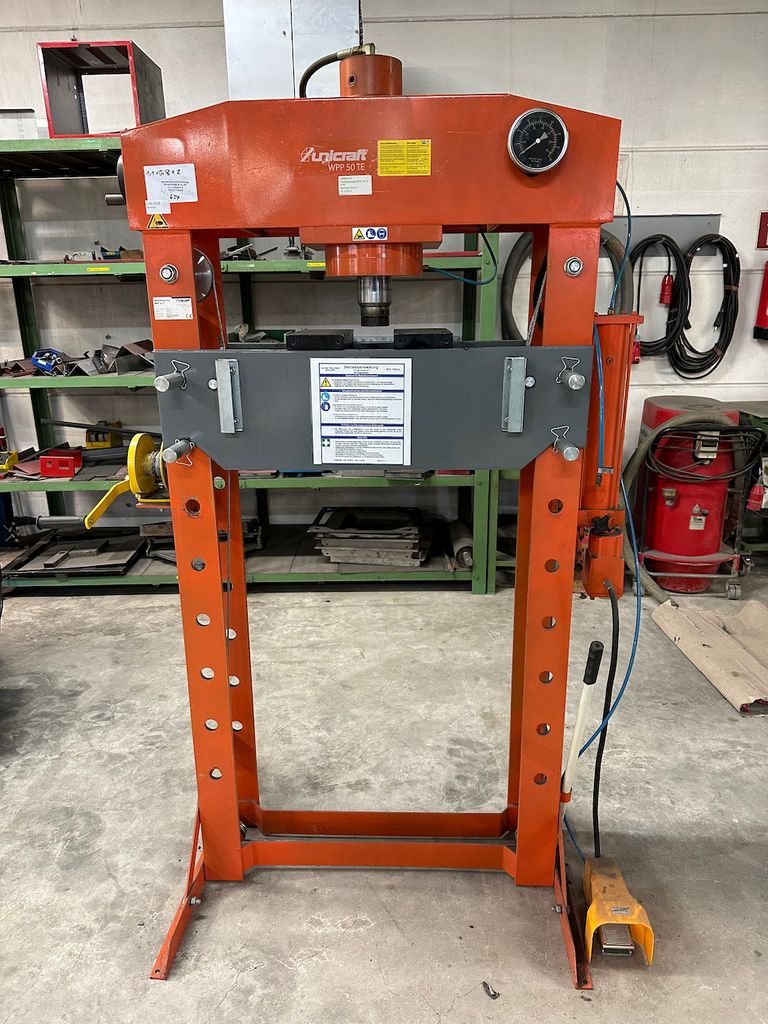

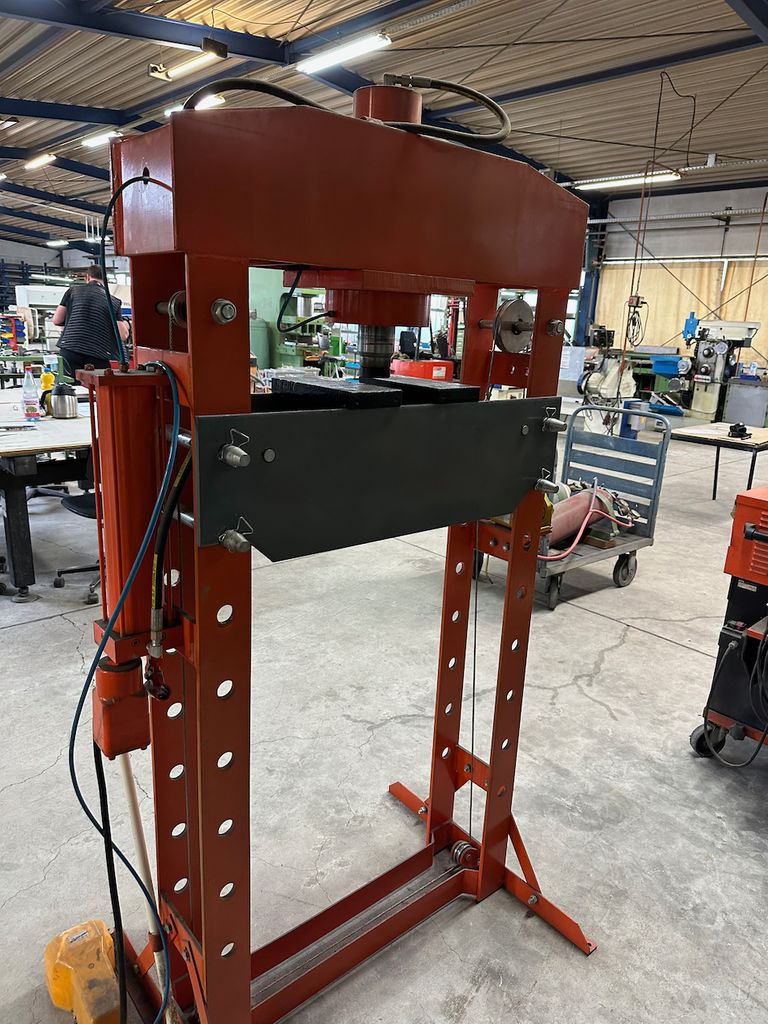

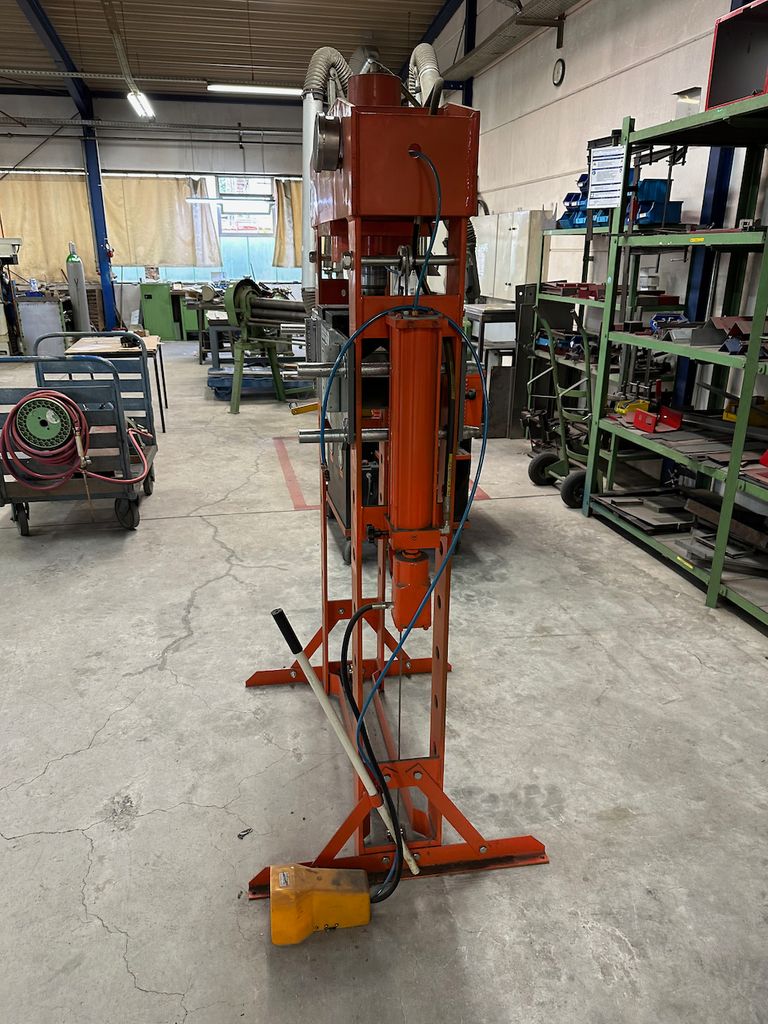

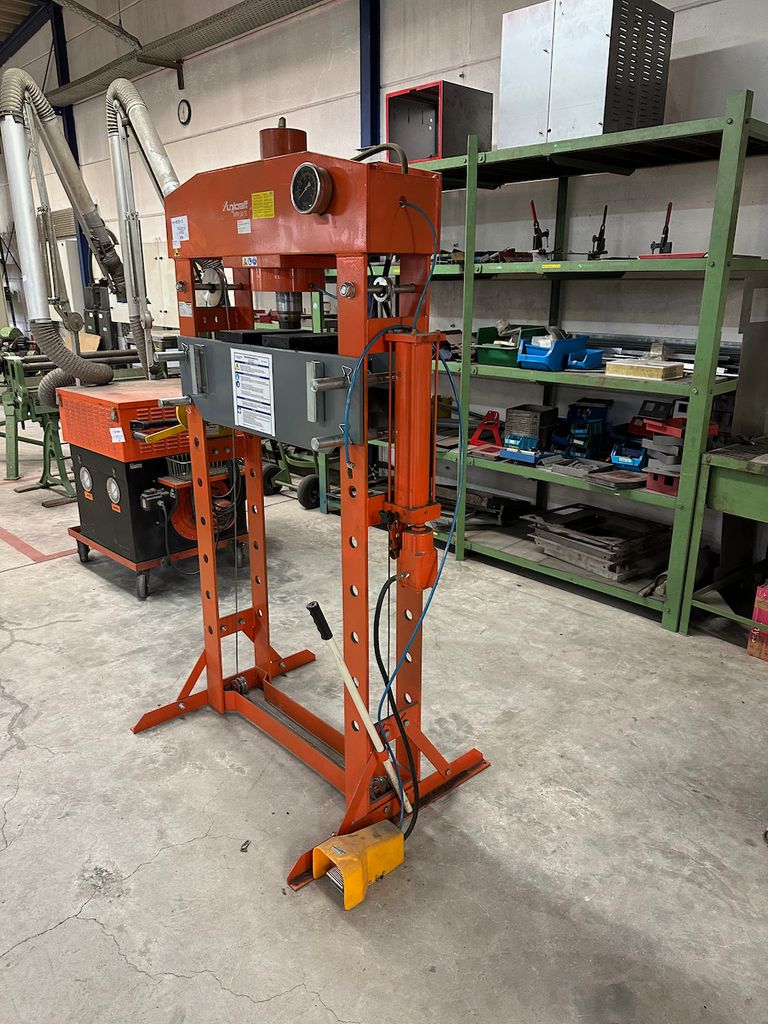

Unicraft WPP 50 TE - Hydraulic Workshop Press 50T

900.00 EUR

Status: Available

Technical Data

Pressing Force: 50 t
Piston Stroke: 200 mm
Piston Travel: 245 mm
Piston Diameter: 75 mm
Clearance: 730 mm
Minimum Clearance Height: 69 mm
Maximum Clearance Height: 1048 mm
Pitch Spacing for Table Height Adjustment: 140 mm
Frame Depth: 207 mm
Stand Width/Depth: 800 mm
Length (approx.): 1030 mm
Width/Depth (approx.): 800 mm
Height (approx.): 1877 mm
Weight (approx.): 302.5 kg
Air Consumption (approx.): 200 l/min
Pneumatic Operating Pressure: 7.5 – 8.5 bar
